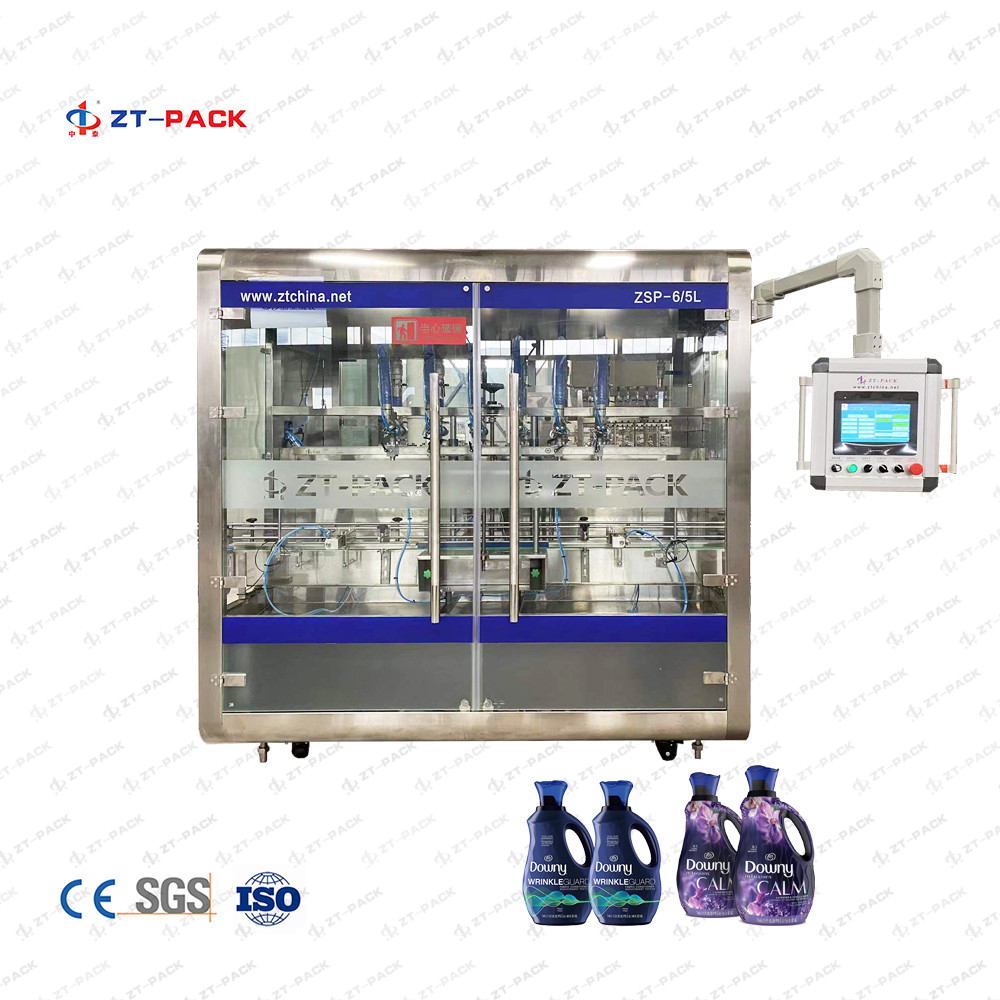

8 Head Automatic Liquid Filling Machinery Viscous Liquid Filler
Power Gel Laundry Detergent Liquid Filling Line
Description
8 Head Automatic Liquid Filling Machinery Viscous Liquid Filler
Power Gel Laundry Detergent Liquid Filling Line is the new-generation improved volumetric filling machine which is
Suitable for material: agrochemical SC,pesticide ,dishwasher ,the
oil kind ,softener ,detergent cream class contour viscosity
materials.
The whole machine uses the in-line structure and it is driven by
the servo motor. Volumetric filling principle can realize the high
precision of filling. It is controlled by the PLC, human interface
and easy operation. The machine is equipped with electric scale
weight feedback system which makes the volume adjustment easier. it
is a nice choice for foodstuff, pharmacy, cosmetic and chemical
industries.
Suitable For Filling: Laundry Detergent / Sanitizer Gel / Shampoo / Shower Gel /
Conditioner / Dishwasher / Clothes Liquid ...Etc kinds Products
Equipment Features:
1.Stainless steel and sanitary pipes are used, and the connection
parts are all fast-connected.
2.The servo motor control belt drives the submerged filling mode of
the filling head operation. With the set variable speed filling
function, the filling head rises with the liquid level, and the
liquid level is synchronized, which can reduce the easy foaming.
The production of foam during filling, preventing bottle mouth
pollution caused by material spillage, effectively increasing
production capacity
3.It can also adopt the de-cylinder structure, which can completely
empty the material in the material tank, effectively avoiding
cross-contamination of materials, and replacing the sealing ring is
more convenient and quick.
4. Mostly components use from Schneider , SICK
5. The latest PTFE technology piston seals improve wear resistance,
longer service life and lower maintenance costs.
Main performance patameter:
1. Capacity:≤4000 bottles/hour (500ml as medium)
2. Applicable Bottle Type:Round bottle Φ40-100 mm,Height 80-280 mm
Flat bottle (40-100mm)*(40-100mm)*(80-280mm)(L×W×H)
3. Bottle's mouth diameter:≥φ25mm
4. filling range:100-5000ml
5. Precision: (100ml) ±1% ;(100ml-1000ml)±0.5%
6. Air pressure : 0.6~0.8 MPA
7. Air consumption:120L/minute
8. Power Source:~380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight:About 850Kg
12. Productiin line height:850mm±50mm
13. Filling materials:Viscosity liquid
14. Bottle feed direction:From left to right
Parameter
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm,
Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
| Filling range | 1L-5L (From ZT-PACK) |
| Filling Type | Piston system |
| Piston Size | 5L |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 380V ;50HZ / 60HZ |
