2.5KW 3KW Fully Automatic 1000ml Liquid Soap Fillling Lundary
Softner Dishwash Power Gel Liquid Bottle Filling Line
Description

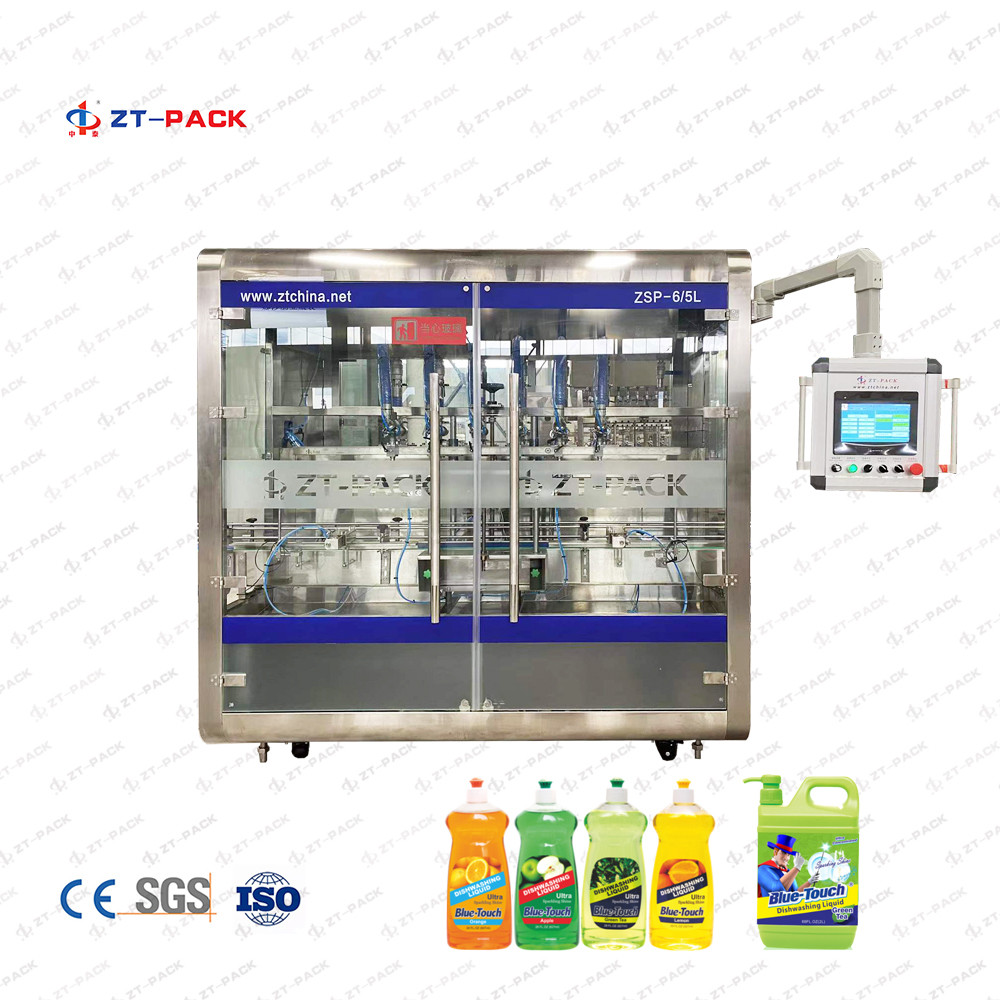

2.5KW 3KW Fully Automatic 1000ml Liquid Soap Fillling Lundary
Softner Dishwash Power Gel Liquid Bottle Filling Line is an extremely flexible piston fillers capable of filling
accurately and rapidly a wide variety of products from low
viscosity liquids to high viscosity paste or cream with or without
chunks or particulates.
Widely used in food industry(e.g.,paste filling machine, butter
filling machine, jam filling machine, ketchup filling machine,
honey filling machine, edible oil filling machine, sauce filling
machine etc); household product industry(e.g.,shampoo filling
machine, liquid soap filling machine, liquid detergent filling
machine, hand wash filling machine etc), personal care
industry(e.g.,cream filling machine, lotion filling machine, gel
filling machine, perfume filling machine etc); Chemical
industry(e.g., grease filling machine, lubricant filling machine
etc); pharmaceutical industry(e.,g ointment filling machine, e
liquid filling machine etc).
Automatic linear piston filler is designed for completely
automatic, multiple position, inline dispensing of liquids and
pastes in volume ranging from 50ml to 1000m per cycle. Available in
6, 8, 10 ,12 and 16 nozzle configurations to match specific
production requirements, Dual lane option is available to increase
production by 100% while preserving valuable line space.
Suitable For Filling: Laundry Detergent / Sanitizer Gel / Shampoo / Shower Gel /
Conditioner / Dishwasher / Clothes Liquid ...Etc kinds Products
Features
1.Stainless steel and sanitary pipes are used, and the connection
parts are all fast-connected.
2.The servo motor control belt drives the submerged filling mode of
the filling head operation.
3.It can also adopt the de-cylinder structure, which can completely
empty the material in the material tank, effectively avoiding
cross-contamination of materials, and replacing the sealing ring is
more convenient and quick.
4.The latest PTFE technology piston seals improve wear resistance,
longer service life and lower maintenance costs.
5.Single-row layout cylinders and fast change-over fixing method
which is very easy for cylinder disassembling and the sealing parts
cleaning inside.
Parameter:
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm,
Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
| Filling range | 1L-5L (From ZT-PACK) |
| Filling Type | Piston system |
| Piston Size | 5L |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 380V ;50HZ / 60HZ |
Details:
