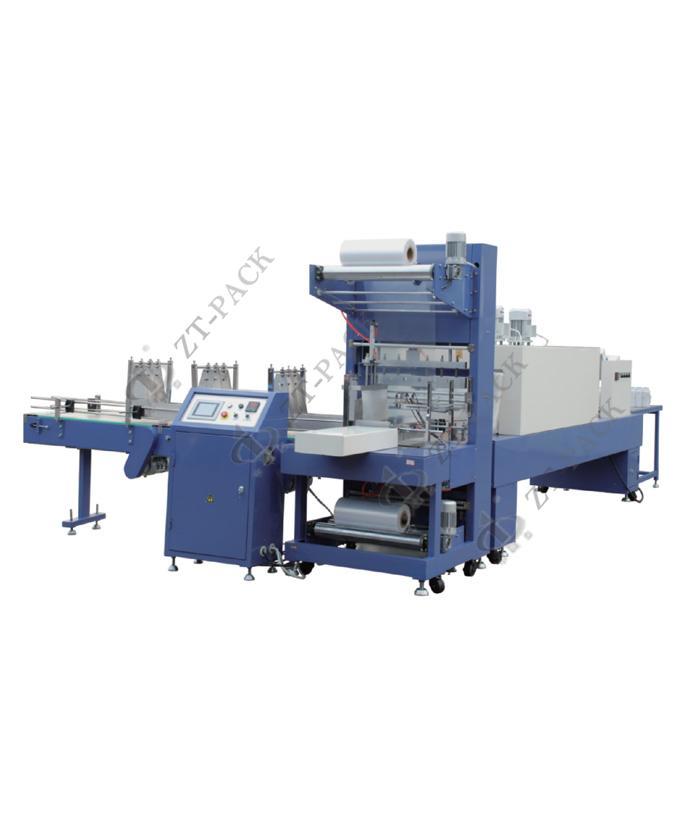

SB-15B Full-Automatic Shrink Packing Machine Without Tray
Product description:
The machine is an automatic mantle heat-shrink packing machine that
is widely used in square,round,flat shape bottle plastic film
shrink packing for beverage, food, medicine, chemical industry,
without bottom bracket, without carton boxes, packing perfectly,
low cost, do not take place, easy to transport.
| Capacity | 6-15b/min |
| packing dimension | 600×400×350mm |
| size of shrink tunnel | 3700×920×1800mm |
| heigh of cornneyor | 920mm |
| air pressure | 0.6-0.8Mpa |
| total power | 20Kw |
| voltage | 3phase-5wire AC380V,50/60Hz |
| net weight | 1500kg |
| dimension | 5050(L)×3300(W)×2100(H)mm |
Features:
1. The machines use the advanced man-machine interface automatic
control technology,the key electric elements adopt international
famous products.
2. The machine operation, easy to adjust, can be used on the
production line.
3. The unique design of the knife plate within the scope of the
specification, shall not be in a knife block, by changing the blade
fast and convenient. 4. The unique set of standard methods, using
the compression type of label, is convenient and reasonable.
5. The whole machine transmission type structure to make the
changing bottles is extremely convenient.
6. Suitable for 5 ~ 10 "the membrane material, uniform, efficient,
and can do, stop action.
7. Can be used in square and round bottles.
8. the elevating center pillar height is adjusted.
9. Using high sensitivity optical fiber electric eye, precision-cut
length.
- Heavy-duty stainless steel constructed anodized aluminum components
- Electronic components are a world-famous brand
- Capable of labeling flat, oval, square and round containers
- Variable speed bottle infeed separator wheel
- PLC control and user-friendly HMI
- Servo motor drive delivers accurate and high-speed repeatable
labeling
- A top stabilizing/conveyor belt is provided to hold the bottle for
proper labeling.
- Automatically synchronized label head and conveyor belt
- Power-assisted web take-up
- Low or missing label detection with an automatic stop system to
prevent mislabeling
- Non-contact photo eye sensors
- Label counter
Suitable for :
It is suitable for double-ided or single-sided self-adhesive labels
for square bottles, round bottles, and irregular bottles. It is
usually widely used in daily chemicals, edible oils, lubricants,
pesticides, and personal care.
