Stainless steel 5000BPH automatic lid screw twist off plastic
bottle capping machine
Description:
FXZ-160A Capping Machine is making up with cap sorter, cap falling
rail, bottle-tightening structure and screwing wheels. By the
tightening of the belts, the bottles finish the movement of cap
scratch, push and twist off. It applies to the thread capping of
round and flat bottles plastic lids. This capping machine is with
easy structure and adjustment. When changing the bottle type, you
do not need to change the spare part, only adjustment is enough.
This machine is equipped with SUS304 environmental cover, conform
to different industry environment standard.
Features:
1.This machine applies and torques caps onto containers.
2.It’s suitable for various material and figure Containers. Such as
plastic bottles, glass bottles, and metal bottles.
3.If we want to change different figure bottles and caps for
tightening, we don't need instead any components. we just adjust
the position of several components.
4.No caps down when no bottle in the seat.
Sorter Selections machine, conveyor machine, cap tightening
machine, bottle clamping strap can be conversion adjusted to meet
the tightening requirements for various bottles and caps.
5.The machine good type stainless steel, also applied to GMP
standard requirement. (Custom-tailoring diversified for special
specification)
Details:
1. The whole machine uses Schneider brand which can make sure the
stability of the machine.
2. A cap sensor is installed in the cap sender. When there is not
enough cap, the elevator will start working to make sure providing
caps.
3. Use a handle to adjust the height and tight of the
machine,stable and reliable.
4. A mirror is installed to check the state of caps.
5. The tightening belt can working for a very long time.
6. The plastic screwing wheels with new material can last for a
very long time.
7. Intelligent blow back lid system
Intelligent checking back lid, high-speed magnetic valve rejector,
solving the noise polluction, large comsumption of air and low
qualified rate. Convenient adjustment.
Parameter setting:
| 1 | Capacity | ≤5000 B/H(1000mL) |
| 2 | Suitable bottle | Diameter Φ40-160mm ; Height: 50-350mm |
| 3 | Cap size | Diameter Φ15-100mm ; Height : 15-40mm |
| 4 | Air compressor | 0.5-0.7 Mpa |
| 5 | Power | ～220V 50Hz/2.4KW |
| 6 | Weight | Around 850Kg |
| 7 | Size | 2000×900×1960mm(L×W×H) |
| 8 | Qualified rate | ＞98% |
Configure:
| 1 | Frequency | Schneider |
| 2 | Relay | Schneider |
| 3 | Button | Schneider |
| 4 | Pressure switch | Airtac |
| 5 | Power | Schneider |

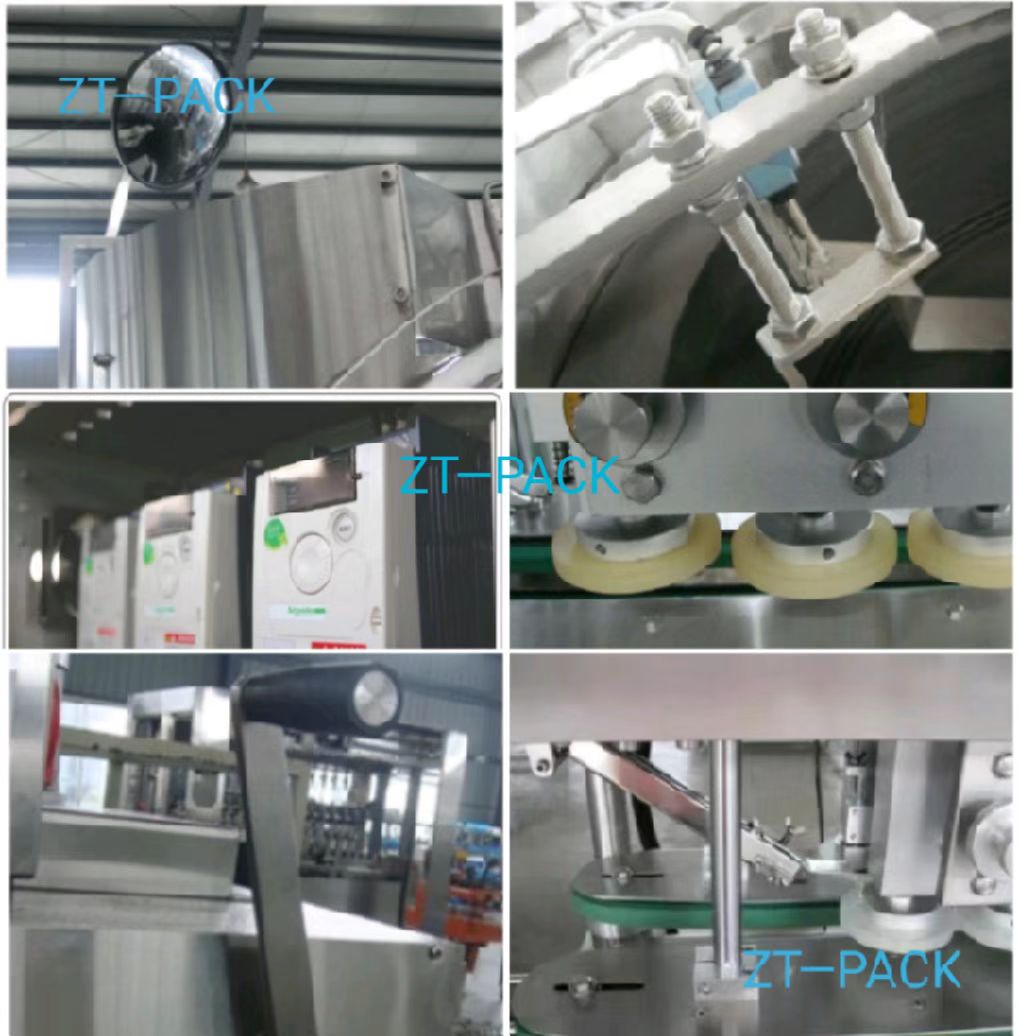

Pictures:
