High-Efficiency Automatic Liquid Cleaning Detergent Chemicals Filling Machine Production Line

Description

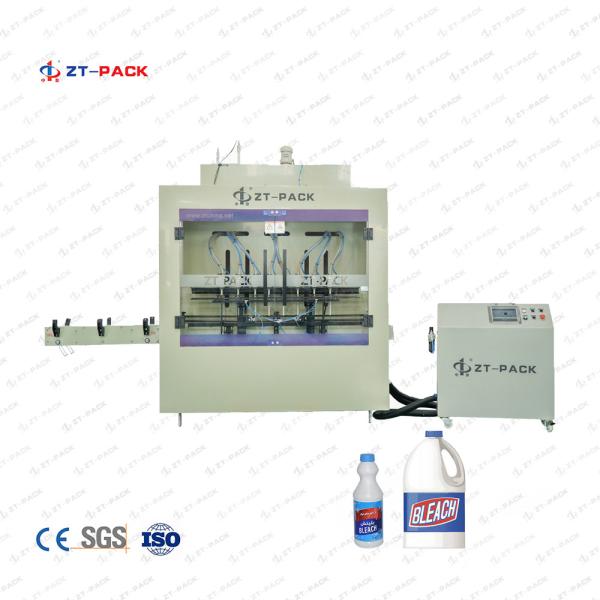

The 1.5L chemicals packaging machine combines filling and capping in one machine to bottle shampoos, detergents, lotions, and other cosmetic products. The cosmetic packaging production line can process different bottles holding less than 5L and functions as a complete production line with conveyors, labeling, filling, sealing, and packaging into cartons.

1. Capacity:≤4000 bottles/hour (500ml as medium)
2. Applicable Bottle Type:Round bottle Φ40-100 mm,Height 80-280 mm Flat bottle (40-100mm)*(40-100mm)*(80-280mm)(L×W×H)
3. Bottle's mouth diameter:≥φ25mm
4. filling range:100-5000ml
5. Precision: (100ml) ±1% ;(100ml-1000ml)±0.5%
6. Air pressure : 0.6~0.8 MPA
7. Air consumption:120L/minute
8. Power Source:~380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight:About 850Kg
12. Production line height:850mm±50mm
13. Filling materials:Viscosity liquid
14. Bottle feed direction:From left to right

• Only three people (one operator, two assistants) are needed to operate this production line.
• Cosmetic filling machine is precise with a high qualified rate.
  Production capacity can be increased by up to 30%.
• Double-sided self-adhesive labeling machine processes round and flat bottles.
• Falling style packaging machine can process small quantities of heavier bottles that other machines can't.
• The automatic carton opening and sealing machines are easy to operate and speed up production.

Suitable For Filling: Bleach / / Toilet Cleaner / Flash / Acid / Chlorine / Sulfuric acid / 84 Disinfectant...Etc kinds Products
