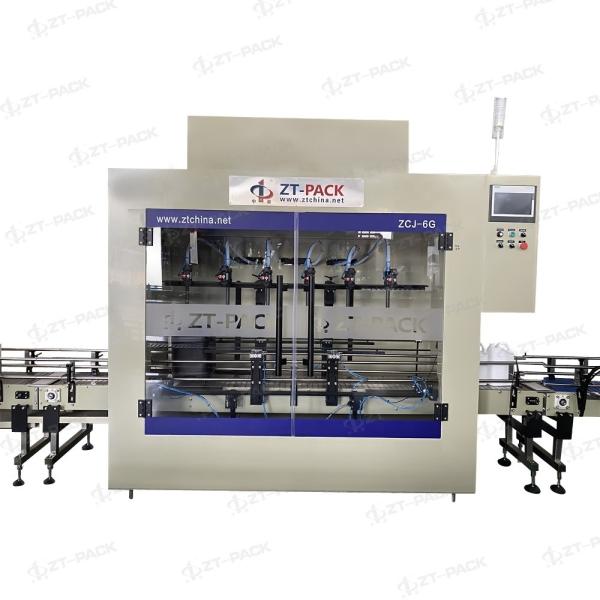

5L-30L Automatic Drum Gallons Barrel Filling Machine For Bleach
Acid Corrosive Liquids Filling Production Packing Line
Description
- Heavy duty plastic construction
- Controls PVC / Polyurethane Contact Parts
- Plastic reservoir
- Acid resistant tabletop chain
- Automatic product level sensing float system
- Safety guarding
- Easily adjustable nozzle height settings accommodate different
height containers
- Pneumatic indexing gates (count in, count out)
- Able to output multiple doses per container for large containers
- User friendly PLC controls with touch screen HMI
- Easy clean stainless steel quick connect fittings
- Neck grabbers for containers wtih small opening
- No bottle/No fill
| | | | | |
| | | |
| | | | | |
| | | | | |
| 1KW | 1KW | 1KW | 1.5KW | 1.5KW |
| Diameter:Φ40mm————Φ100mm Height: 80mm———— 280mm |
| ≤100ml: + -1.5ml 100-500ml: + -2ml 500-1000ml: + -3ml |
| ≤Φ10mm ( can be designed accordingly) |
| |
| |
| |
Features:
This non-metal filling machine is specially designed for strong
acid and alkali products, such as hydrochloric acid products
bleach.
(1) PLC controlled friendly touch screen control.
(2) Famous brand electrical and pneumatic components used to
guarantee machines quality and long life service time.
(3) Vacuum suck back for dripping can be specially designed for the
foamy products.
(4) All wetted parts are made of non-metal materials,
anti-corrosion.
(5) Not only whole filling heads can be adjusted, but each filling
head can be fine-adjusted respectively.
(6) Bottle inlet counting, quantitative filling, bottle outlet
counting, and serious motions can be done automatically.
(7) Simple structure, easy operation, Low noise, reliable running,
accurate filling.
Suitable For Filling: Bleach / / Toilet Cleaner / Flash / Acid / Chlorine / Sulfuric
acid / 84 Disinfectant...Etc kinds Products
