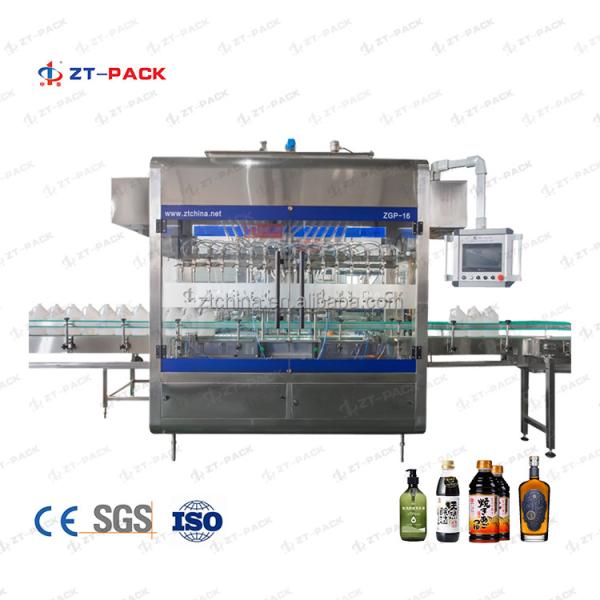

    Edible Vinegar Soy Sauce Gravity Liquid Bottle Filling Machine Automatic

    Ask Lasest Price
    Brand Name : ZT-PACK
    Model Number : ZGP
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : TT/LC
    Supply Ability : 45 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Edible Vinegar Soy Sauce Gravity Liquid Bottle Filling Machine Automatic

    Automatic General Type Edible Vinegar Soy Sauce Gravity Liquid Bottle Filling Machine


    Description:

    Suitable for fill: Vinegar / Soy Sauce/ Cooking Wine / Apple Cider Vinegar / Alcohol... Etc kinds Products
    Filling Range : 50ml -1000ml ;1L -5L ; 4L -20L
    Speed can be chosen: From 1000BPH-6000BPH (Basic on 1L )
    Suitable for: Round & flat bottles
    1. Very fast and easy changeover of format size
    2. Diving nozzle with bottom-up filling


    Parameters:


    ModelZGP-6HZGP-8HZGP-10HZGP-12HZGP-16H
    Dimension2000×710×2200mm (L×W×H)2200×710×2200mm (L×W×H)2300×710×2200mm (L×W×H)
    Filling head68101216
    Capacity(1L)1500B/H1800 B/H2200 B/H2800 B/H4000 B/H
    Power1KW1 KW1KW1.5KW1.5KW
    Suitable bottleDiameter:Φ33mm——Φ100mm Height:80mm——280mm
    Filling accurate≤100ml:+ -1.5ml
    100-500ml:+ -2ml
    500-1000ml:+ -3ml
    Neck diameterΦ18mm
    Filling range50ml——5000ml
    Air pressure0.6Mpa
    Power supply220V ;50HZ

    Main performance patameter:
    1. Capacity:≤4000 bottles/hour (500ml as medium)
    2. Applicable Bottle Type: Round bottle Φ40-100 mm, Height 80-280 mm
    Flat bottle (40-100mm)*(40-100mm)*(80-280mm)(L×W×H)
    3. Bottle's mouth diameter:≥φ25mm
    4. filling range:100-5000ml
    5. Precision: (100ml) ±1% ;(100ml-1000ml)±0.5%
    6. Air pressure: 0.6~0.8 MPA
    7.Air consumption:120L/minute
    8. Power Source:~380V,50HZ
    9. Power:2.5KW
    10. External Dimension:2440×1150×2300mm(L×W×H)
    11. Weight: About 850Kg
    12. Production line height:850mm±50mm
    13. Filling materials: Viscosity liquid
    14. Bottle feed direction: From left to right

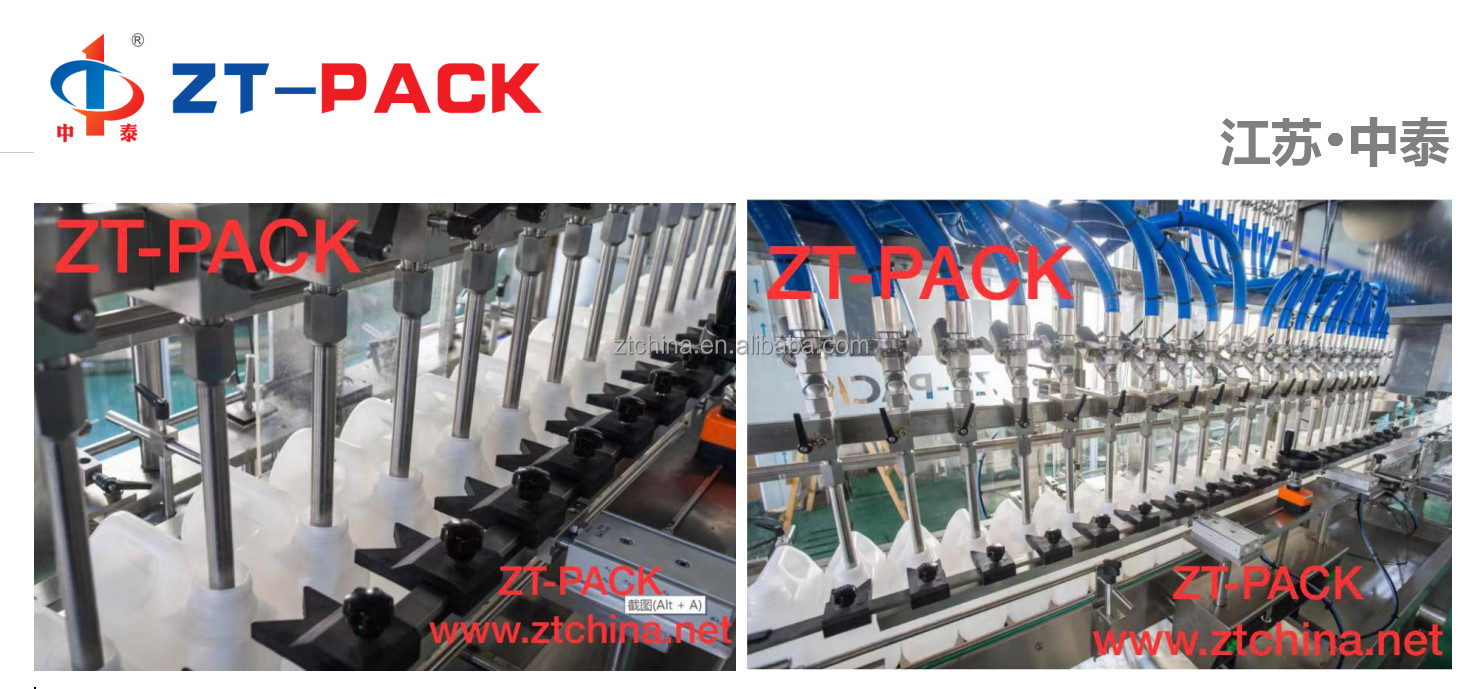

    Details:


    Edible Vinegar Soy Sauce Gravity Liquid Bottle Filling Machine Automatic

    Edible Vinegar Soy Sauce Gravity Liquid Bottle Filling Machine Automatic
