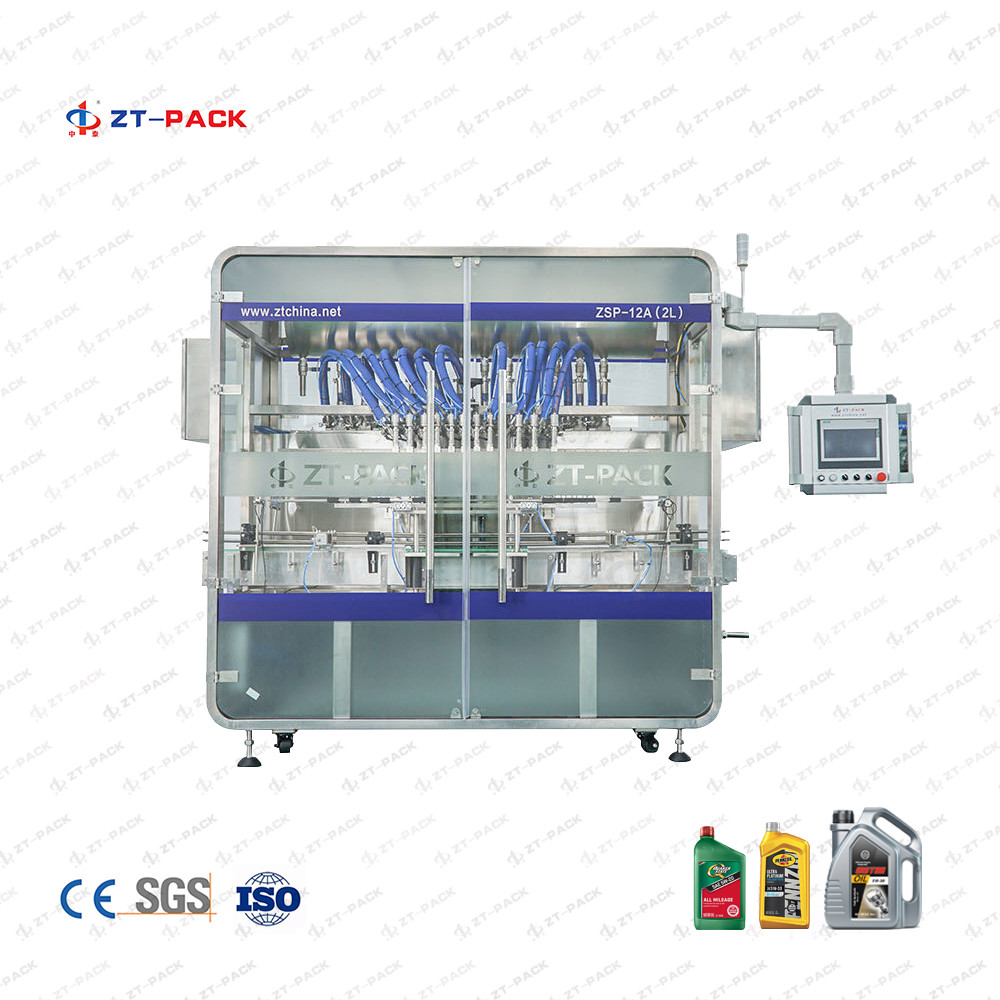

High Quality Automatic Enginer Motor Oil 6 Head IL Lubricant Oil
Filling Machine
Description
High Quality Automatic Enginer Motor Oil 6 Head IL Lubricant Oil
Filling Machine is an extremely flexible piston fillers capable of
filling accurately and rapidly a wide variety of products from low
viscosity liquids to high viscosity paste or cream with or without
chunks or particulates. Widely used in food industry(e.g.,paste
filling machine, butter filling machine, jam filling machine,
ketchup filling machine, honey filling machine, edible oil filling
machine, sauce filling machine etc); household product
industry(e.g.,shampoo filling machine, liquid soap filling machine,
liquid detergent filling machine, hand wash filling machine etc),
personal care industry(e.g.,cream filling machine, lotion filling
machine, gel filling machine, perfume filling machine etc);
Chemical industry(e.g., grease filling machine, lubricant filling
machine etc); pharmaceutical industry(e.,g ointment filling
machine, e liquid filling machine etc).
Automatic linear piston filler is designed for completely
automatic, multiple position, inline dispensing of liquids and
pastes in volume ranging from 50ml to 1000m per cycle. Available in
6, 8, 10 ,12 and 16 nozzle configurations to match specific
production requirements, Dual lane option is available to increase
production by 100% while preserving valuable line space.
Suitable for fill : Lubricant Oil / Car Oil / Motor Oil / coolant
liquid / engine oil / Lubricanting Oil kinds Products
Filling Range : 50ml -1000ml
1L -5L
4L -20L
208L / 220L -1000L
Speed can be choosen : from 1000BPH-6000BPH (basic on 1L )
contact us for more details
Parameters:
| Model | ZGP-6H | ZGP-8H | ZGP-10H | ZGP-12H | ZGP-16H |
| Dimension | 2000×710×2200mm (L×W×H) | 2200×710×2200mm (L×W×H) | 2300×710×2200mm (L×W×H) |
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(500mL) | 1500B/H | 2000 B/H | 2500 B/H | 3000 B/H | 4000 B/H |
| Power | 1KW | 1 KW | 1KW | 1.5KW | 1.5KW |
| Suitable bottle | Diameter:Φ40mm——Φ100mm Height:80mm——280mm |
| Filling accurate | ≤100ml:+ -1.5ml
100-500ml:+ -2ml
500-1000ml:+ -3ml |
| Neck diameter | ≤Φ10mm ( can be designed accordingly) |
| Filling range | 50ml——5000ml (From ZT-PACK) |
| Filling System | Gravity Time Control |
| Air pressure | 0.6Mpa |
| Power supply | 220V ；50HZ / 60HZ |
