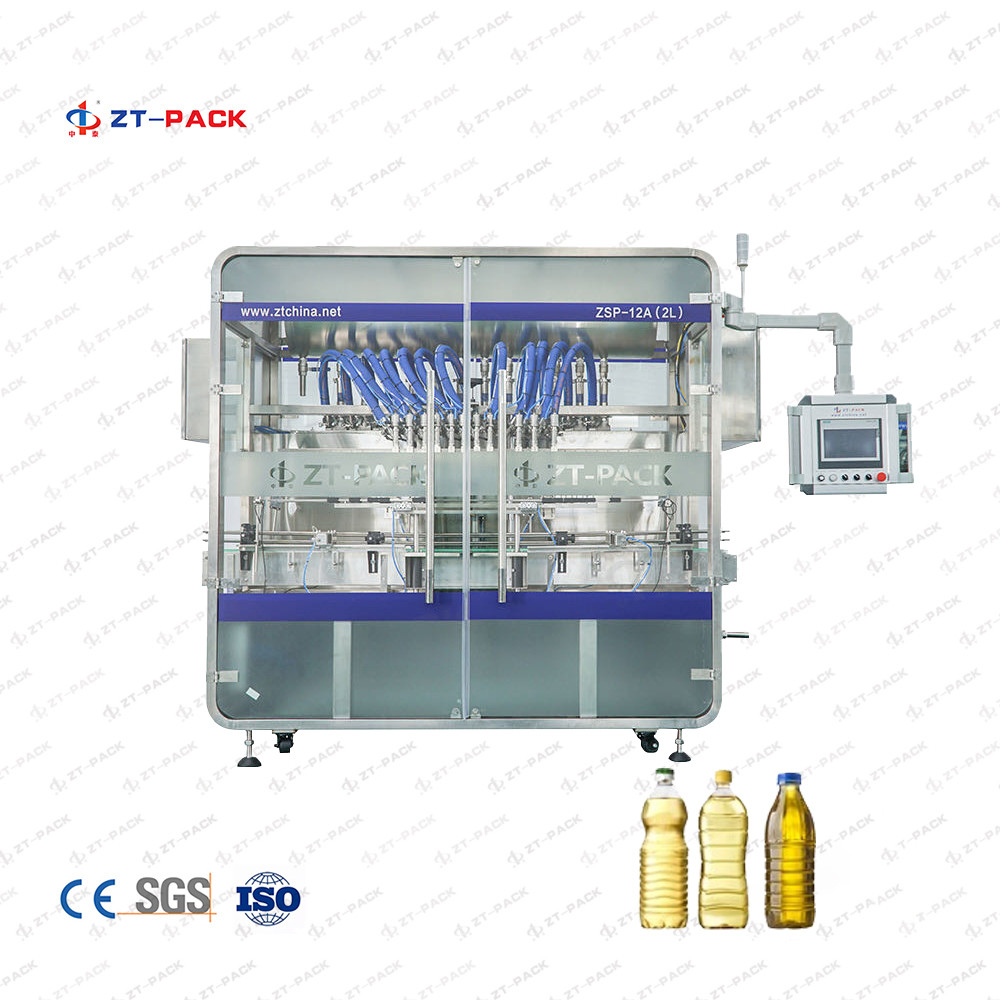

New Design Automatic Sesame Oil And Olive Oil Samll Bottle Edible
Oil Filling Machine
Description
New Design Automatic Sesame Oil And Olive Oil Samll Bottle Edible
Oil Filling Machine is an extremely flexible piston fillers capable
of filling accurately and rapidly a wide variety of products from
low viscosity liquids to high viscosity paste or cream with or
without chunks or particulates.
Widely used in food industry(e.g.,paste filling machine, butter
filling machine, jam filling machine, ketchup filling machine,
honey filling machine, edible oil filling machine, sauce filling
machine etc); household product industry(e.g.,shampoo filling
machine, liquid soap filling machine, liquid detergent filling
machine, hand wash filling machine etc), personal care
industry(e.g.,cream filling machine, lotion filling machine, gel
filling machine, perfume filling machine etc); Chemical
industry(e.g., grease filling machine, lubricant filling machine
etc); pharmaceutical industry(e.,g ointment filling machine, e
liquid filling machine etc).
Automatic linear piston filler is designed for completely
automatic, multiple position, inline dispensing of liquids and
pastes in volume ranging from 50ml to 1000m per cycle. Available in
6, 8, 10 ,12 and 16 nozzle configurations to match specific
production requirements, Dual lane option is available to increase
production by 100% while preserving valuable line space.
This filling machine combined with a bottle unscrambler, a capping
machine, a labeling machine and other machines can automatically
complete bottle unscramble, filling, capping, sealing, labeling, QR
code, unpacking, packing, sealing, and palletizing, equipped with
an integrated environmental protection cover. It conforms to the
standards of safety, environmental protection and intelligent
three-levelization, and the production process is automatically
coordinated, which is stable and efficient.
Main Performance Parameter:
1. Capacity:≤2000 bottles/hour
2. Applicable Bottle Type:1L Height 190-200mm,width
135-145mm,thickness 55mm.
3. Bottle’s mouth diameter:1L diameter 35-45mm,machine design
according to customer bottle
4. filling range:100ml-1000ML
5. Precision: (100ml-1000ml)±0.5%
6. Air pressure : 0.6～0.8 MPA
7.Air consumption:120L/minute
8. Power Source:～380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight:About 1850Kg
12.Production line height:850mm±50mm
13.Filling materials:Viscosity liquid
14.Bottle feed direction:From left to right
Parameters:
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm,
Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
| Filling range | 1L-5L (From ZT-PACK) |
| Filling Type | Piston system |
| Piston Size | 5L |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 380V ;50HZ / 60HZ |
| Model | ZSP-6A | ZSP-8A | ZSP-10A | ZSP-12A | ZSP-16A |
| Dimension | 2200mm(L)x1100mm(W) x2200mm(H) | 2300mm(L)x1100mm(W) x2200mm(H) | 2400mm(L)x1100mm(W) x2200mm(H) |
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 2300 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
| Power | 2.2KW | 2.2KW | 2.2 KW | 3KW | 3KW |
| Suitable bottle | Diameter:Φ40mm--Φ100mm Height:80mm--280mm |
| Neck diameter | Φ18mm |
| Filling range | 50ml--1000ml (From ZT-PACK) |
| Filling System | Piston Type |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 380V ;50HZ / 60HZ |
Details:
