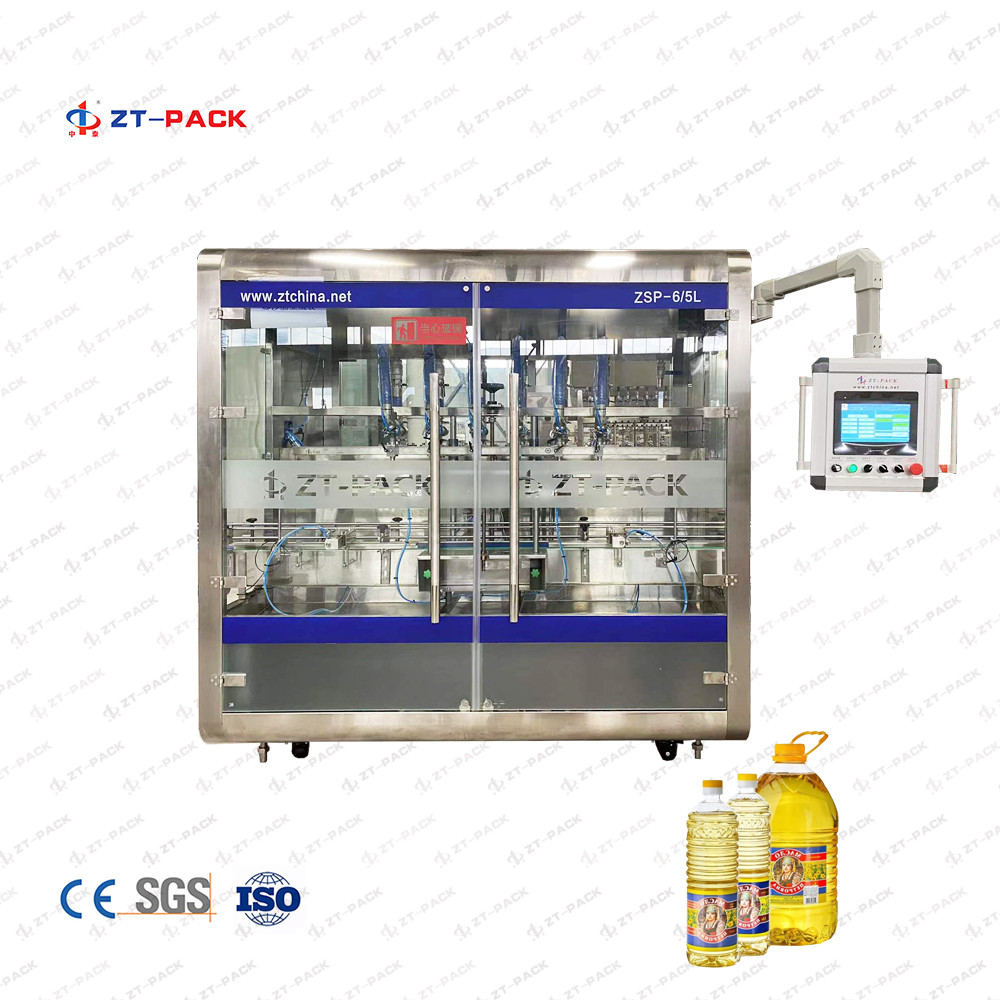

Hot Sale 6Head 5L SunFlower Oil And Edible Oil Filling Machine
Description
Hot Sale 6Head 5L SunFlower Oil And Edible Oil Filling Machine is
an extremely flexible piston fillers capable of filling accurately
and rapidly a wide variety of products from low viscosity liquids
to high viscosity paste or cream with or without chunks or
particulates.
Widely used in food industry(e.g.,paste filling machine, butter
filling machine, jam filling machine, ketchup filling machine,
honey filling machine, edible oil filling machine, sauce filling
machine etc); household product industry(e.g.,shampoo filling
machine, liquid soap filling machine, liquid detergent filling
machine, hand wash filling machine etc), personal care
industry(e.g.,cream filling machine, lotion filling machine, gel
filling machine, perfume filling machine etc); Chemical
industry(e.g., grease filling machine, lubricant filling machine
etc); pharmaceutical industry(e.,g ointment filling machine, e
liquid filling machine etc).
Advantages:
1.Stainless steel and sanitary pipes are used, and the connection
parts are all fast-connected.
2. The servo motor control belt drives the submerged filling mode
of the filling head operation. With the set variable speed filling
function, the filling head rises with the liquid level, and the
liquid level is synchronized, which can reduce the easy foaming.
The production of foam during filling, preventing bottle mouth
pollution caused by material spillage, effectively increasing
production capacity
3.filling way with dive style, using different materials seal
rings, to meet the different characteristics of the filling
material.
4.the machine produced according to GMP standards , all piping
connections using quick way to disassemble and clean convenient
location and contact with the material exposed parts are made of
high quality stainless steel , machine safety, environmental
protection , health, beauty, able to adapt a variety of work in
different environments.
Feature:
This non-metal filling machine specially designed for strong acid
and alkali product, such as: hydrochloric acid products bleach.
1. PLC controlled, friendly touch screen control.
2. Famous brand electrical and pneumatic components used to
guarantee machines quality and long life service time.
3. Vacuum suck back for dripping can be special designed for foamy
product.
4. All wetted parts are made of non-metal materials,
anti-corrosion.
5. Not only whole filling heads can be adjusted, but each filling
head can be fine-adjusted respectively.
Main Performance:
1. Capacity:≤2000 bottles/hour
2. Applicable Bottle Type:1L Height 190-200mm,width
135-145mm,thickness 55mm.
3. Bottle’s mouth diameter:1L diameter 35-45mm,machine design
according to customer bottle
4. filling range:100ml-1000ML
5. Precision: (100ml-1000ml)±0.5%
6. Air pressure : 0.6～0.8 MPA
7.Air consumption:120L/minute
8. Power Source:～380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight:About 1850Kg
12.Production line height:850mm±50mm
13.Filling materials:Viscosity liquid
14.Bottle feed direction:From left to right
