Linear High Speed 4000BPH Flow Meter Filling Machine For Lube Oil Motor Oil Machine Oil Bottle Package Machine

Description

This filling machine adopts PLC and touch screen automatic control. It has the advantages of accurate measurement, advanced structure, stable operation, low noise, large adjustment range and fast filling speed.
For lubricant oil lube oil and other oils bottles equipment preferred.
The measurement can be adjusted digitally on the human-machine interface, and the required measurement can be set to 1L-5L, which can be reached at the touch of the touch screen, and the measurement can be fine-tuned on a single head. The equipment is controlled by the patent system of single head single pump single frequency converter, which ensures the filling accuracy of 1‰. While ensuring the filling accuracy, the filling speed is increased by 20%-35%. The operation is simple, the maintenance is convenient, the labor cost is saved, and the production efficiency is higher.

Feature:

1.Control system---- SIEMENS PLC control system, random minitriming filling measurement

2.Operation interface----Two rows of the color operation interface, Convenient operation,stable and reliable.

3.Function improvement----The feeding nozzle is equipped with filling blocker. This machine can realize diving filling according to the material properties.(this function can be selected)

4.Filling show---the filling result is displayed in the unit of weight ,intuitive and clean
Real-time alarm----Automatic alarming when the fault happens,automatic stopping and alarming when the system appears serious breakdown.

5.Electrical elements----Adopting international famous brand to ensure the remarkable quality, stability and high precision.

6.Machine elements----The parts contacted with the material use the 316 high-quality stainless steel and non-poisonous, anti-corrosive PTEF hose.Other machine parts use the 304 high-class stainless steel.

7.Expansion function----- We can carry out special configuration according to the customers’ requirements.(material airtight, heating and sterilizing etc.)

8.Counting detection----Real- time counting, reflecting the output directly.

9.Filling detection----No-bottle no-filling, it will not conduct filling if the bottles are not enough.

10.Function upgrading---We have designed intelligent weighing feedback system to realize the unmanned debugging function.

11.Environmental protection configuration----Equipped with eco-friendly frame, realizing more clean and sanitary operation environment.(this environmental protection configuration can be selected)

12.Maintenance condition----Fully accords to the GMP requirements, easy to disassemble and clean.
Function upgrading---We have designed intelligent weighing feedback system to realize the unmanned debugging function. Filling dose is more accurate, the original ± 0.5% of filling accuracy increased about 10 times

13.Changing specification--According to the changing of market specifications 5L -25L large-dose packaging range, only in the same machine operation. To save the equipment cost for the customer. when changing filling specifications, just adjust, no need to change any components. easily done.

Parameters:

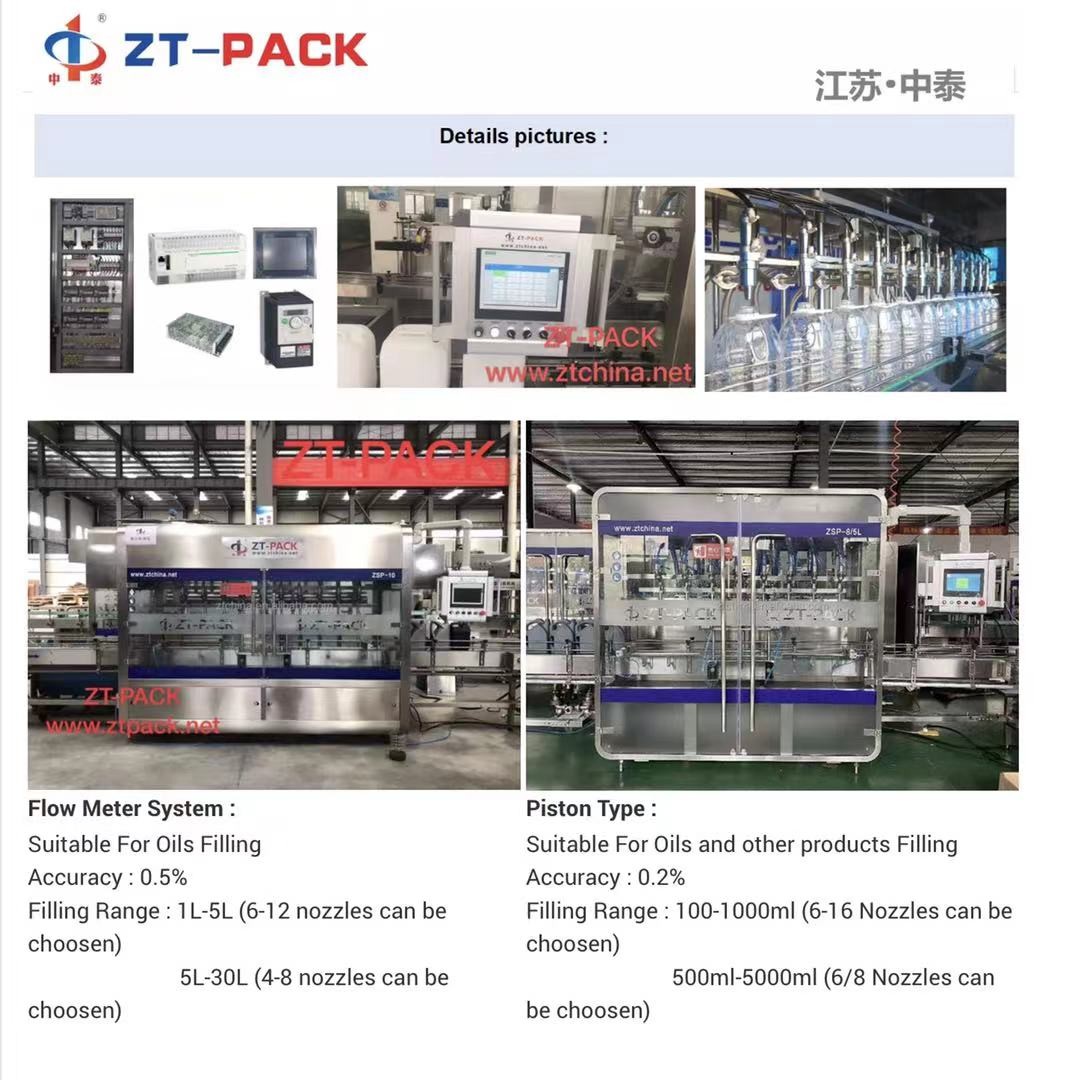

Details:
