Automatic Lubricant/ Motor/ Lube / Engine Oil Bottle Gallon Tin Can Filling Capping Machine

• This type filling system is flow meter type which is the better ideal for oils filling packing
• The principle of the elliptic gear flow meter is to measure the rotation of the elliptic gear by the pressure head of the measured medium.
• The greater the viscosity of the medium, the smaller the leakage from the gear and the space gap, the greater the viscosity of the medium, the smaller the leakage error and the more favorable for the measurement.
• The elliptical gear flow meter has high accuracy and is suitable for the measurement of the flow rate in the medium with high viscosity, especially for the filling of different labels and different viscosity.

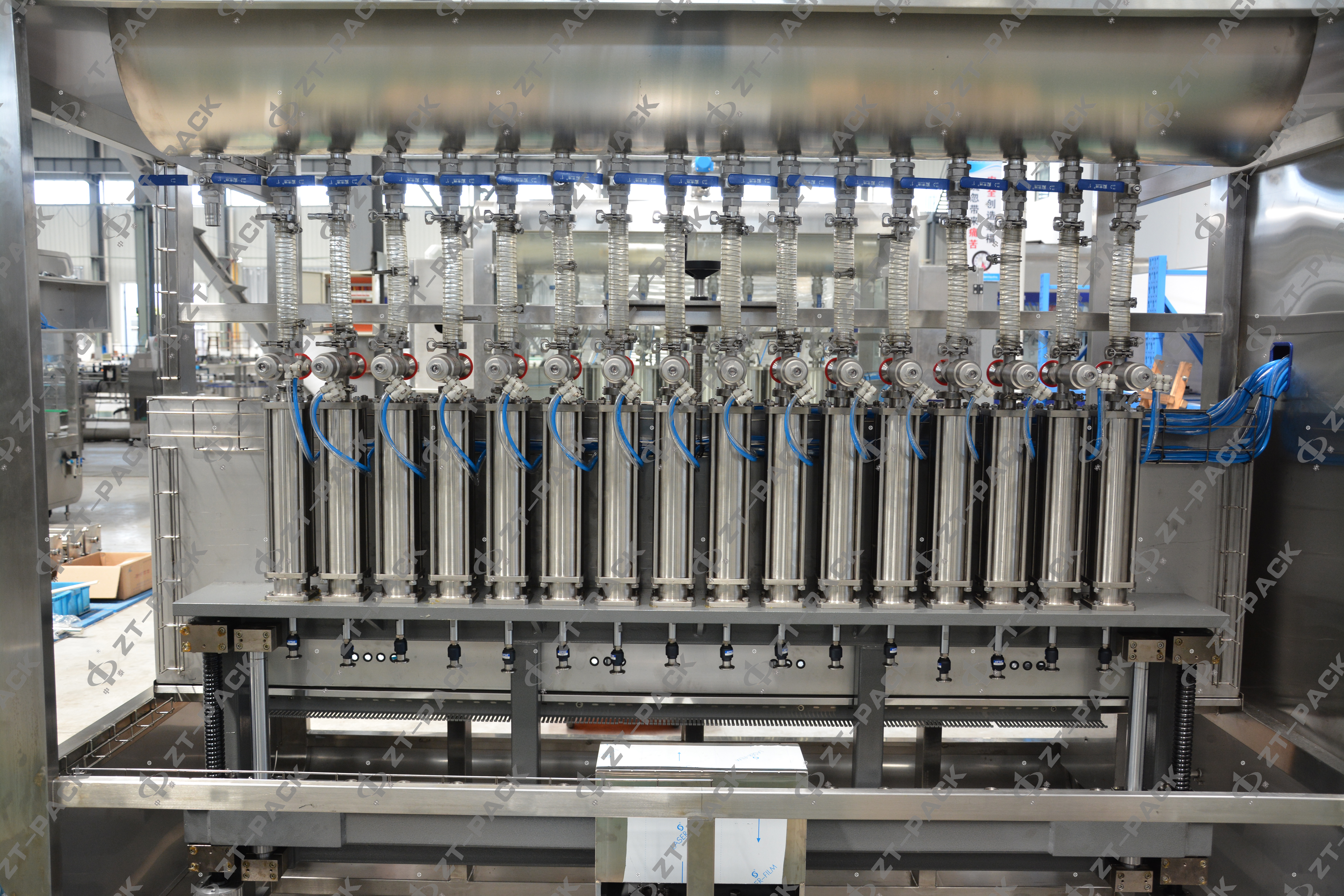

• The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity such as 4/ 6/ 8 /12 nozzles.
• The filling volume is controlled by flow meter and gear pump, good filling accuracy and high filling speed.

Advantages of flowmeter system:

1. Quick adjustment: the dosage adjustment is convenient and fast. Just set the volume directly on the touch screen. Considering that the density of vegetable oil at different temperatures leads to different volume settings, we have added an automatic temperature compensation system.

2. Filling accuracy: it replaces the traditional computational flowmeter launched by our company - through the pulse generator, the rotary coding is more accurate.

3. Filling speed: instead of the traditional power transmission - pressure self flow, the machine adopts frequency converter to adjust the filling speed, and the efficiency is greatly improved. The speed can be adjusted arbitrarily on the panel. The filling accuracy adjustment is promoted by our company, and the filling weight can be set on the touch screen.

4. It is not affected by seasons. It can be easily filled in summer and winter, and is not limited by oil viscosity. For example, gear oil can also be easily filled. The more viscous the material, the more obvious the advantage of flowmeter filling method.

5. Simple operation: the operation interface is simple, easy to learn and maintain, and has low requirements for on-site operators. It can be solved with one key by using startup and formula adjustment

6. There are no wearing parts in the production process, mechanical transmission and low use cost.

Parameters:

Details:
