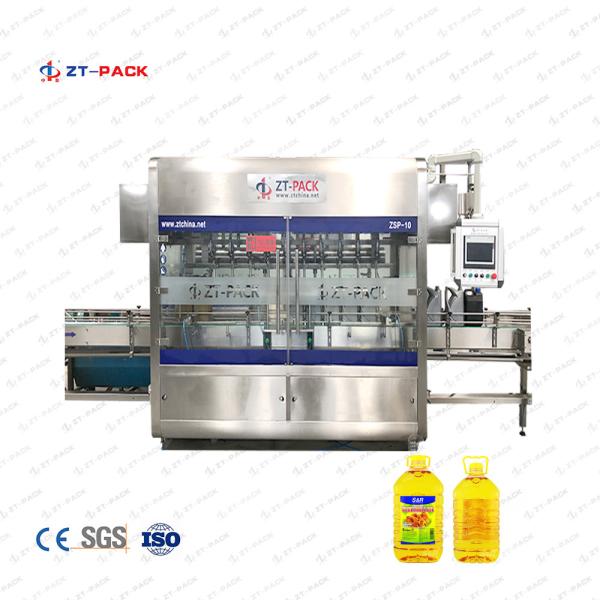

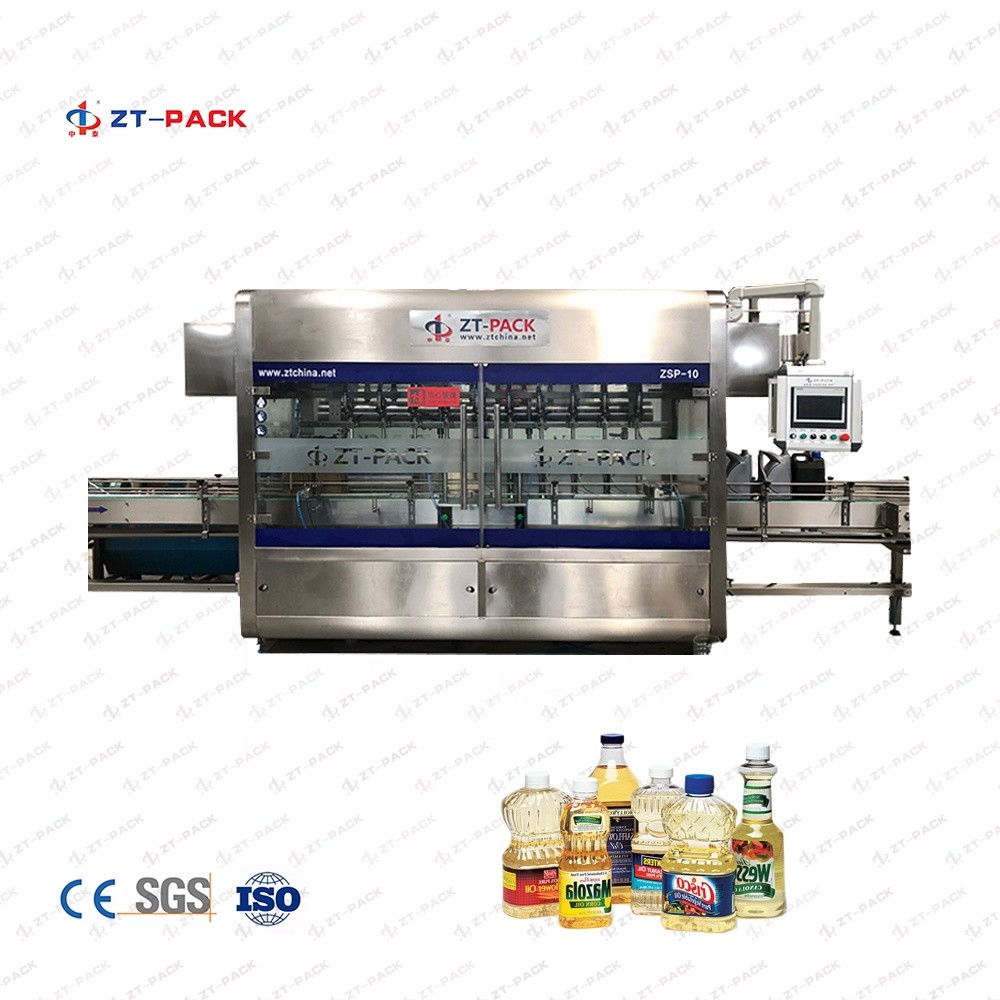

8Head Flow Meter 2L 3L Fully Automatic Sunflower Oil Edible Oil
Filling Machine
Description
8Head Flow Meter 2L 3L Fully Automatic Sunflower Oil Edible Oil
Filling Machine is a Flow Meter Type filling machine with high
filling accuracy.
It applies to 0.5-5L liquid for filling.
Filling system can be choose: Flow meter /piston
Widely use for edible oil packing industries
The machine is made by in-line structure , filling head quantity
can be custom-made according to different production capacity such
as 4/ 6/ 8 /12 nozzles.
This filling machine adopts PLC and touch screen automatic control.
It has the advantages of accurate measurement, advanced structure,
stable operation, low noise, large adjustment range and fast
filling speed.
For peanut oil, walnut oil and other oils canned equipment
preferred.
The measurement can be adjusted digitally on the human-machine
interface, and the required measurement can be set to 1L-5L, which
can be reached at the touch of the touch screen, and the
measurement can be fine-tuned on a single head. The equipment is
controlled by the patent system of single head single pump single
frequency converter, which ensures the filling accuracy of 1‰.
While ensuring the filling accuracy, the filling speed is increased
by 20%-35%. The operation is simple, the maintenance is convenient,
the labor cost is saved, and the production efficiency is higher.
Parameters:
| Model | ZT-FM |
| Nozzle Number | 6 | 8 | 10 | 12 |
| Filling volume | 500ml-5L(From ZT-PACK) |
| Production capacity | 300-4000pcs/Hour (Depend on filling volume and filling head) |
| Quantitative error | ≤±0.5% |
| Voltage | AC200V / 380±10% ; 50HZ/60HZ |
| Filling method | By Flow meter system |
| Consumed power | 3 | 6 | 9 | 12 |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 1.5kw | 2.2kw | 3kw | 4kw |
Equipment configuration
| NO | ITEM | BRAND |
| 1 | PLC | SIEMENS |
| 2 | Touch screen | SIEMENS |
| 3 | Frequency | Schneider |
| 4 | Sensor | Sick |
| 5 | Power | Schneider |
| 6 | Pressure switch | Airtac |
| 7 | Pneumatic Components | Airtac |
| 8 | Button | Schneider |
| 9 | Alarm light | Schneider |
| 10 | Proximity switch | Sick |
