Dishwashing Liquid Wash Cleaner Detergent Plastic Bottle Filling
Machine Piston Servo Type Motor Manufacturing Machine
Description
Dishwashing Liquid Wash Cleaner Detergent Plastic Bottle Filling
Machine Piston Servo Type Motor Manufacturing Machine is the new-generation improved volumetric filling machine which is
Suitable for material: agrochemical SC,pesticide ,dishwasher ,the
oil kind ,softener ,detergent cream class contour viscosity
materials.

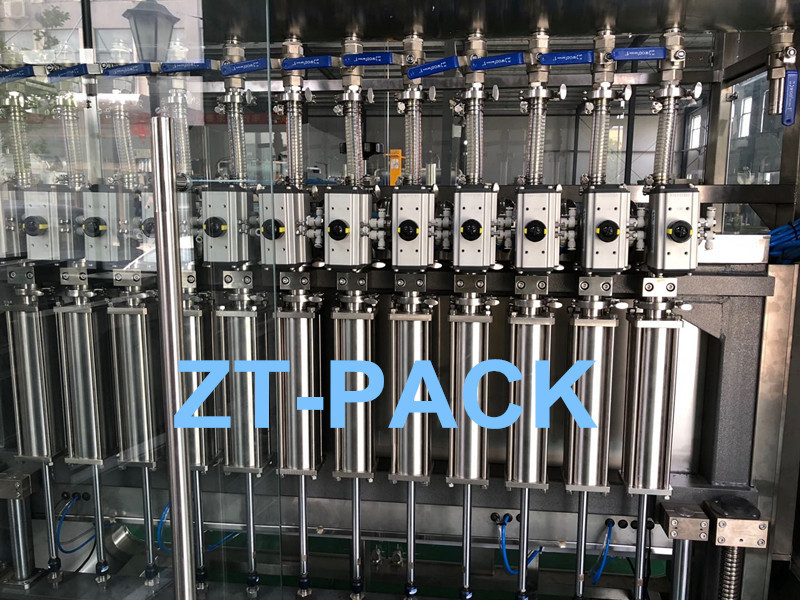

Automatic linear piston filler is designed for completely
automatic, multiple position, inline dispensing of liquids and
pastes in volume ranging from 50ml to 1000m per cycle. Available in
6, 8, 10 ,12 and 16 nozzle configurations to match specific
production requirements, Dual lane option is available to increase
production by 100% while preserving valuable line space.
The whole machine uses the in-line structure and it is driven by
the servo motor. Volumetric filling principle can realize the high
precision of filling. It is controlled by the PLC, human interface
and easy operation. The machine is equipped with electric scale
weight feedback system which makes the volume adjustment easier. it
is a nice choice for foodstuff, pharmacy, cosmetic and chemical
industries.
Suitable For Filling: Laundry Detergent / Sanitizer Gel / Shampoo / Shower Gel /
Conditioner / Dishwasher / Clothes Liquid ...Etc kinds Products
Parameter
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm,
Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
| Filling range | 1L-5L (From ZT-PACK) |
| Filling Type | Piston system |
| Piston Size | 5L |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 380V ;50HZ / 60HZ |
| Model | ZSP-6A | ZSP-8A | ZSP-10A | ZSP-12A | ZSP-16A |
| Dimension | 2200mm(L)x1100mm(W) x2200mm(H) | 2300mm(L)x1100mm(W) x2200mm(H) | 2400mm(L)x1100mm(W) x2200mm(H) |
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 2300 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
| Power | 2.2KW | 2.2KW | 2.2 KW | 3KW | 3KW |
| Suitable bottle | Diameter:Φ40mm--Φ100mm Height:80mm--280mm |
| Neck diameter | Φ18mm |
| Filling range | 50ml--1000ml (From ZT-PACK) |
| Filling System | Piston Type |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 380V ;50HZ / 60HZ |
Detail:
