    Automatic Acid Filling PVC Bottling Line Liquid Filling Machine for Harpic Packing

    Ask Lasest Price
    Brand Name : ZT-PACK
    Model Number : ZGP-G
    Certification : CE,ISO,SGS,SABER
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 45sets per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Automatic Acid Filling PVC Bottling Line Liquid Filling Machine for Harpic Packing

    Automatic Acid Filling Machinery Harpic Packing Plastic Liquid Filler PVC Bottling Line Filling machines


    Description:

    Suitable for Fill : Bleach / Flash / Acid / HCL ... All corrosive liquids
    Filling Range : 50ml -1000ml / 500ml -5000ml / 5-20L
    Capacity speed : 1000-5000BPH can be choosen
    Machine Material : Plastic

     Heavy duty plastic construction
     Controls PVC / Polyurethane Contact Parts
     Plastic reservoir
     Acid resistant tabletop chain
     Automatic product level sensing float system
     Safety guarding
     Easily adjustable nozzle height settings accommodate different height containers
     Pneumatic indexing gates (count in, count out)
     Able to output multiple doses per container for large containers

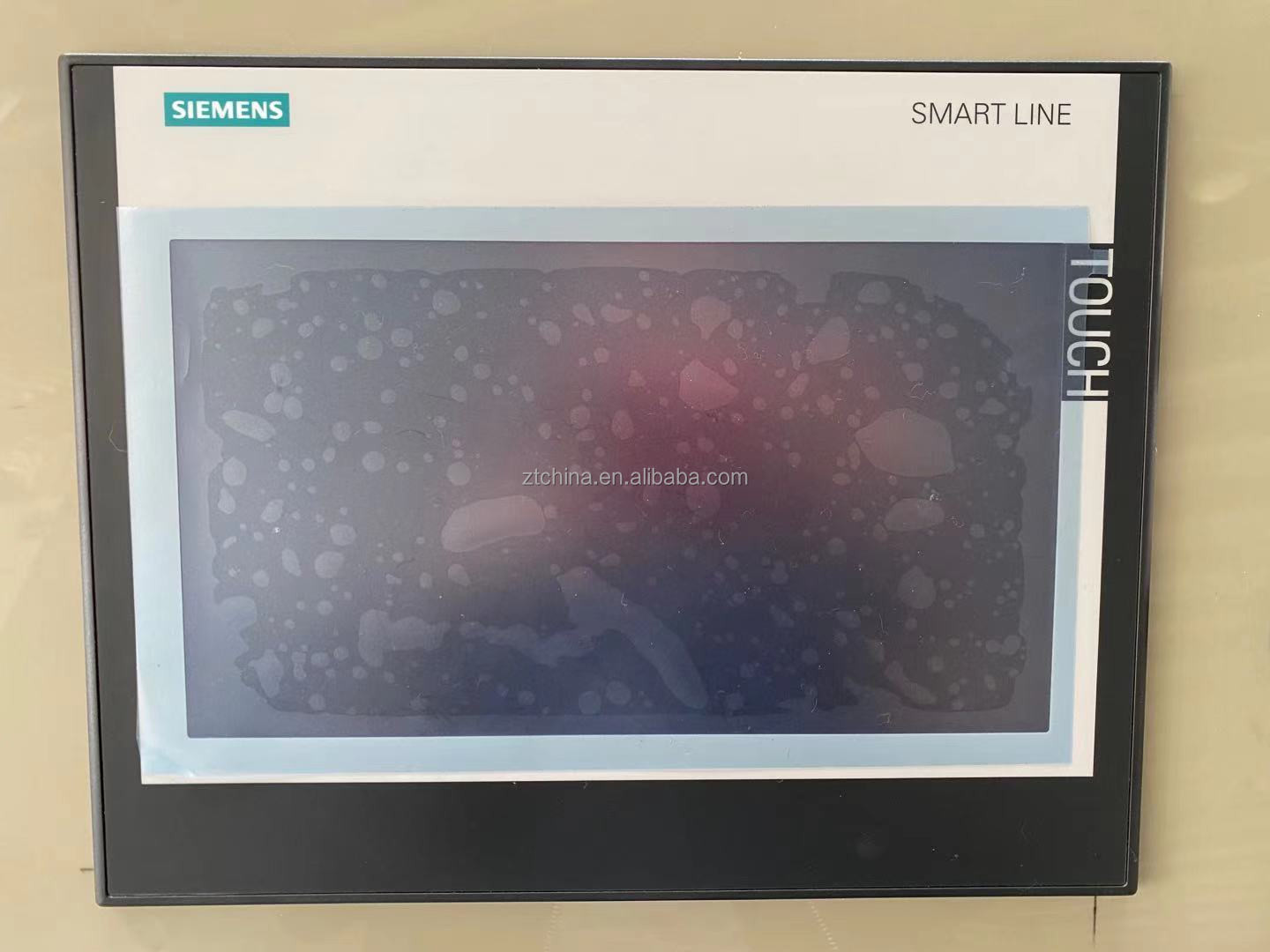

     User friendly PLC controls with touch screen HMI
     Easy clean stainless steel quick connect fittings
     Neck grabbers for containers wtih small opening
     No bottle/No fill
    Parameter

    Containers and Specifications (100mL-5000mL)

    Model
    ZGP-6GZGP-8GZGP-10GZGP-12GZGP-16G
    Dimension
    2200x1110x2200mm (LxWxH)
    2300x1110x2200mm (LxWxH)
    2400x1110x2200mm (LxWxH)
    Filling head
    68101216
    Capacity (1L)
    1800 B/H2400 B/H3000 B/H3600 B/H4800 B/H
    Power
    2.2KW2.2KW2.2KW3KW3KW
    Suitable bottle
    Diameter:Φ40mm————Φ100mm Height: 80mm———— 280mm
    Neck diameter
    Φ18mm
    Filling range
    100mI— 5000ml (From ZT-PACK)
    Air pressure
    0.6 Mpa-0.8MPa
    Power supply
    380V;50HZ/60HZ

    Details:

    Automatic Acid Filling PVC Bottling Line Liquid Filling Machine for Harpic Packing

    Automatic Acid Filling PVC Bottling Line Liquid Filling Machine for Harpic PackingAutomatic Acid Filling PVC Bottling Line Liquid Filling Machine for Harpic PackingAutomatic Acid Filling PVC Bottling Line Liquid Filling Machine for Harpic PackingAutomatic Acid Filling PVC Bottling Line Liquid Filling Machine for Harpic Packing
